Small size, big versatility! Designed specifically for industrial embedded applications, it operates on a low 3.3V power supply and comes with the HMILite configuration software for host computers. Drag-and-drop control development eliminates the need for low-level programming, allowing you to quickly complete UI design and program downloads.
✅ Two versions available: Resistive touch / Non-touch, supports external capacitive touchscreen

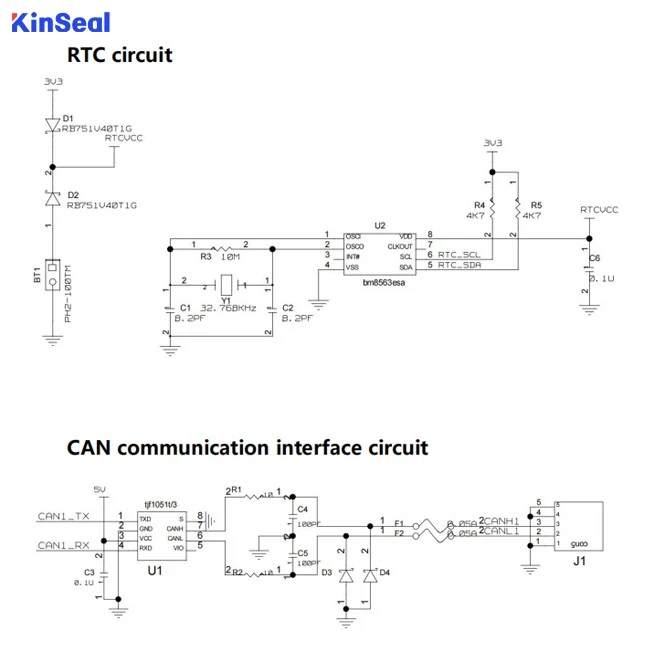

✅ Rich interfaces: Default 1×TTL UART (UART2), 1×CAN (CAN1), reserved GPIOs, SD card slot, RTC & buzzer interfaces for flexible expansion
✅ Rugged reliability: Complies with IEC standards, passes ±4KV air ESD, ±4KV EFT group pulse, and -20℃~70℃ wide-temperature aging tests
👉 Typical Applications: Small equipment control panels, instrument displays, smart home central controls, auxiliary screens for self-service kiosks
|

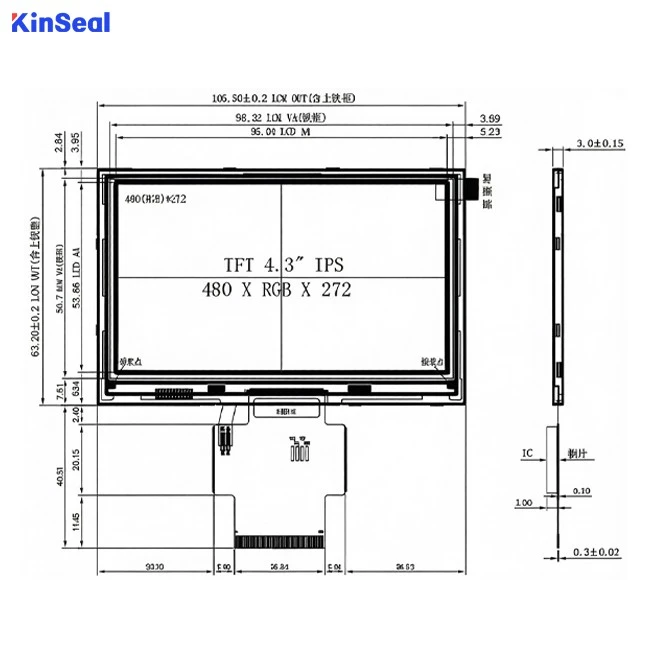

📱 4.3" TFT LCD: 65,536 colors, 250 cd/㎡ brightness, 20,000 hours LED backlight lifespan |
|
|
⚙️ Code-free Development: HMILite software includes 30+ built-in widgets (switches, gauges, trend charts, alarm panels), supports C macro instructions for complex logic |
|
|
🛡️ Industrial Durability: Certified ESD, EFT and high-low temperature tests, stable operation in 10%~90% non-condensing humidity |
|
|
🔌 Flexible Expansion: 0.5mm-50P FPC connector, supports USB firmware download, external SD storage, multi-serial port reservation |
Q: Are the communication interfaces sufficient for multi-device linkage?
